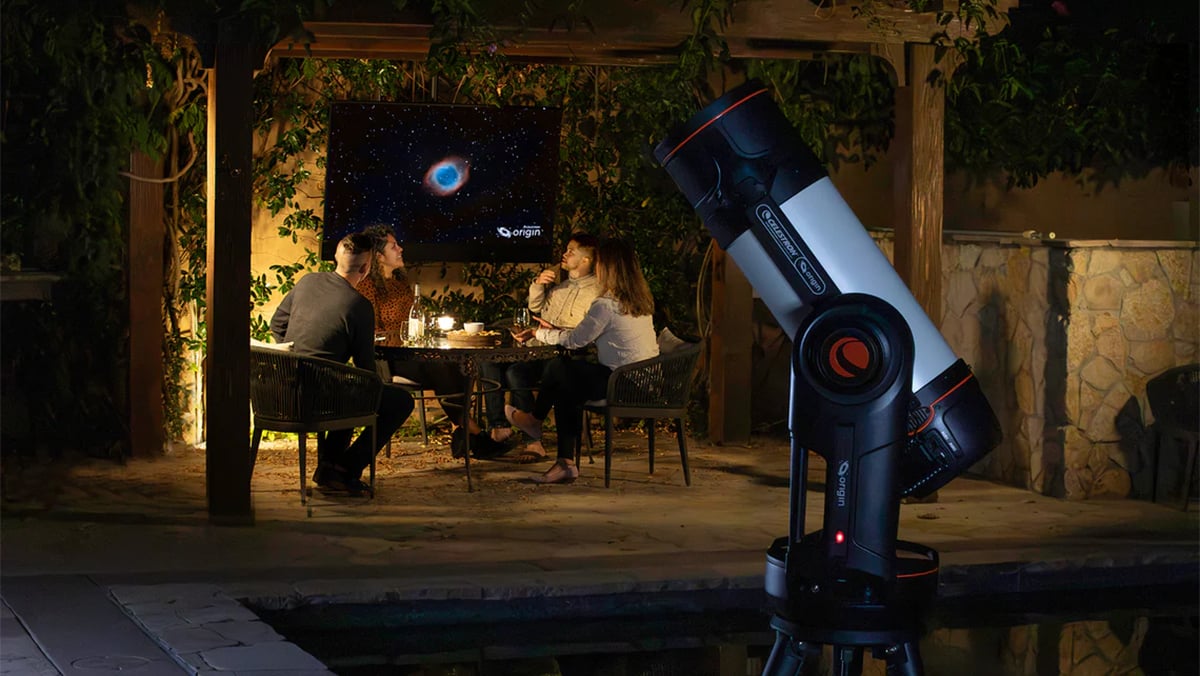

Celestron Origin Intelligent Home Observatory


The Celestron Origin Intelligent Home Observatory is a revolutionary telescope that brings the wonders of the universe to your backyard.  Designed for both beginners and seasoned astronomers, it combines advanced optics with user-friendly technology to make stargazing accessible and enjoyable.

Design and build

The Origin features a classic telescope design with modern enhancements.  Its 6-inch (152mm) aperture Rowe-Ackermann Schmidt Astrograph (RASA) optical tube offers a fast f/2.2 focal ratio, ideal for capturing detailed images of deep-sky objects. The telescope is mounted on a computerized GoTo alt-azimuth mount, which autonomously aligns and tracks celestial objects.

Celestron Origin features a 6 inch RASA optical tube
Celestron Origin features a 6-inch RASA optical tube

Astrophotography capabilities

At the heart of the Origin is the Sony IMX178 color CMOS sensor, featuring STARVIS back-illuminated technology for high sensitivity and low noise. With a resolution of 6.4 megapixels and a field of view of 1.27° x 0.85°, it delivers sharp, vibrant images of galaxies, nebulae, and more.

The telescope’s AI-powered image stacking technology captures multiple exposures and combines them in real-time, producing detailed and colorful images without user intervention. Advanced users can download raw image files via USB-A ports for further processing.

Bode's and Cigar galaxy captured with Celestron Origin
Bode’s and Cigar galaxy captured with Celestron Origin

Automation and ease of use

The Origin is equipped with Celestron’s patented StarSense technology, which scans the sky and autonomously focuses and aligns the telescope in less than two minutes. The companion Origin app, developed in partnership with Simulation Curriculum, offers a planetarium-style interface for easy navigation and control.

Origin app
Origin app

Additional features

  • Dew Prevention: An automated heating element integrated into the front lens prevents dew formation, ensuring clear observations.
  • Cooling System: Dual fans cool the optics and electronics, maintaining optimal performance during extended sessions.
  • Battery Life: The built-in 97.9 Wh LiFePO4 battery provides up to 6 hours of operation, allowing for uninterrupted stargazing.

Educational and sharing capabilities

The Origin app includes educational audio presentations on selected celestial objects, enhancing the learning experience. Users can also cast live views to smart TVs or share images instantly, making it perfect for group observations.

celestron origin

Key specifications

Here are the key specifications of the Celestron Origin:

Optics

  • Optical Design: Rowe-Ackermann Schmidt Astrograph (RASA)
  • Aperture: 152mm (5.98″)
  • Focal Length: 335mm (13.18″)
  • Focal Ratio: f/2.2
  • Optical Coatings: StarBright XLT coatings throughout
  • Central Obstruction Diameter: 63mm (2.48″) (41% of aperture diameter)
  • Light Gathering Power: 474x (compared to the human eye)
  • Image Resolution: 1.48 arcsec/pixel
  • Dovetail: CG-5 Dovetail Bar
  • Filter Drawer: Integrated, accepts 1.25″ or 2″ astroimaging filters

Imaging sensor

  • Sensor Type: Sony IMX178LQJ, color, back-illuminated CMOS
  • Sensor Size: 8.92mm (0.35″) diagonal
  • Pixel Size: 2.4μm x 2.4μm
  • Effective Pixels: 6.44 Megapixels (3096 x 2080)
  • Field of View: 1.27° x 0.85°
The Moon captured with Celestron Origin
The Moon captured with Celestron Origin

Integrated electronics

  • Onboard Computer: Raspberry Pi 4 Model B
  • Mount: Computerized GoTo altazimuth mount
  • Dew Prevention: Fully automated heating element integrated into front lens; removable dew shield/lens shade
  • Focus Motor: Autofocus or manual control
  • Cooling Fans: One fan for optics, one fan for electronics; both pull air through vents with wire mesh
  • LED Status Ring: Indicates status “at-a-glance”

Power

  • Battery: Integrated LiFePO4, 97.9 Wh, capable of 6+ hours of use
  • Power Input: 12V DC adapter for charging internal battery or running on external AC power

User interface

  • Control App: Celestron Origin App
  • Compatibility: iOS 16 or higher, Android 12 or higher

Dimensions

  • Optical Tube: 609.6mm x 177.8mm (24″ x 7″) diameter
  • Mount: 457.2mm x 304.8mm x 254mm (18″ x 12″ x 10″)
  • Tripod (Collapsed): 330.2mm x 304.8mm x 812.8mm (13″ x 12″ x 32″)
  • Assembled System: 609.6mm L x 660.4mm W x 1219.2mm H (24″ L x 26″ W x 48″ H)

Weight

  • Optical Tube: 10.6 lb (4.8 kg)
  • Mount: 17 lb (7.7 kg)
  • Tripod: 14 lb (6.35 kg)
  • Total System: 41.6 lb (18.87 kg)
The complete set-up weighs around 19 kg
The complete set-up weighs around 19 kg

Final thoughts

The Celestron Origin Intelligent Home Observatory stands at the forefront of amateur astronomy, blending powerful optics with intelligent automation.  Its user-friendly design and advanced features make it an excellent choice for anyone looking to explore the cosmos from the comfort of their home.

Clear skies!
